As data demands grow rapidly across cloud and enterprise environments, data centers are under pressure to support high-speed, long-distance interconnects. While 100G is becoming the new mainstream for hyperscale infrastructure, 40G remains highly relevant, especially in cost-sensitive scenarios where transmission distances fall within 10 kilometers. Among various 40G solutions, the 40GBASE-PSM4 standard stands out as a practical and efficient option for mid-range to long-range connectivity. In this article, we focus on the QSFP-4X10G-LR-S compatible 40GBASE-PSM4 optical transceiver, examining its architecture, applications, and deployment advantages.

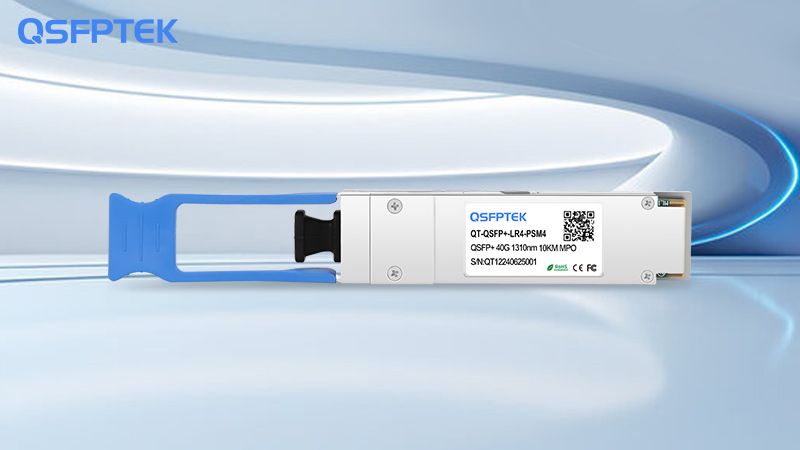

What Is QSFP-4X10G-LR-S 40GBASE-PSM4 Optical Transceiver?
The 40GBASE-PSM4 transceiver is a QSFP+ module designed for 40Gbps Ethernet over single-mode fiber. It operates using four parallel lanes, each transmitting and receiving data at 10Gbps. The QSFP-4X10G-LR-S variant operates on a wavelength of 1310nm and uses an MTP/MPO interface, supporting transmission distances of up to 10 kilometers. It complies with the PSM4 MSA (Multi-Source Agreement) standard, ensuring broad interoperability across devices from different vendors. As a Cisco-compatible model, it integrates seamlessly with Cisco networking equipment and is also supported by many third-party platforms, making it a flexible and widely adopted solution.
Technical Architecture and How It Works
The PSM4 module utilizes four independent transmit and four independent receive channels, each operating at 10Gbps, to deliver a total aggregated bandwidth of 40Gbps. Each channel uses its own optical fiber strand, forming a full-duplex connection over eight fibers—typically a single-mode MTP/MPO-12 connector with 8 active fibers (4 Tx + 4 Rx). Unlike CWDM-based 40G modules such as ER4, which multiplex multiple wavelengths onto a single pair of fibers, the PSM4 architecture uses parallel optics with a straightforward physical layer approach. This simplicity makes it ideal for structured cabling systems, where clear fiber routing and straightforward patching are preferred.
Typical Use Cases in Enterprise and Cloud Data Centers
The QSFP-4X10G-LR-S 40GBASE-PSM4 module is ideal for connecting switches within data centers across medium to long distances—up to 10 kilometers. It is commonly used to connect leaf and spine switches in modern data center architectures, ensuring high-throughput and low-latency paths between aggregation and core layers. Its extended reach makes it suitable for interconnecting equipment located in different buildings, across floors, or in separate rooms within the same campus.
Cloud service providers can also leverage this module to build point-to-point backbone links between edge nodes and central infrastructure. For enterprises with multiple server rooms or large-scale campus networks, the 40GBASE-PSM4 solution enables cost-effective, high-performance uplinks and aggregation links. It’s especially attractive to businesses looking to scale from 10G to 40G without the cost burden associated with ER4 or complex wavelength division multiplexing systems.
Key Benefits of Deploying 40GBASE-PSM4 (10km) Modules
One of the standout features of the QSFP-4X10G-LR-S is its ability to support long-distance transmission up to 10km, which covers the needs of most enterprise and campus data center deployments. By operating over single-mode fiber, it offers significantly lower attenuation than multimode solutions, enabling better long-term scalability and upgrade paths.
Compared to 40GBASE-ER4, the PSM4 solution is more cost-effective and easier to deploy, as it does not require expensive CWDM components or external multiplexing equipment. Its architecture also aligns with future-proof network designs—especially since 100G PSM4 modules follow similar fiber arrangements. This means the structured cabling built for 40G PSM4 today can often be reused for future 100G upgrades, preserving infrastructure investment and reducing migration complexity.
Additionally, its compatibility with standard MTP/MPO cabling systems ensures rapid deployment and simplifies troubleshooting. With its high reliability and predictable performance, PSM4 helps reduce downtime and ensures consistent data center operation.
Important Considerations for Installation and Compatibility
Successful deployment of 40GBASE-PSM4 modules requires careful attention to cabling and network hardware compatibility. The module must be used with high-quality, low-loss single-mode MTP-8 fiber optic cables to maintain proper signal integrity. Cleaning fiber end-faces and ensuring correct polarity are critical, as even minor contamination can introduce insertion loss or reflectance issues.
Before installation, it is essential to verify that the networking equipment supports PSM4 modules and is compatible with the QSFP-4X10G-LR-S coding. Not all QSFP+ ports support all types of 40G modules, so compatibility with vendor firmware or third-party optics may need to be confirmed.
Moreover, the optical power budget should be calculated to ensure the module’s transmit power and receiver sensitivity can support the intended link length. Pre-deployment fiber testing—including continuity, insertion loss, and return loss checks—is highly recommended to avoid performance issues during production.
Conclusion
The QSFP-4X10G-LR-S compatible 40GBASE-PSM4 optical transceiver offers a smart and balanced solution for data centers requiring long-reach 40G connectivity. Its architecture provides a simple, high-bandwidth link over standard single-mode fiber, with up to 10 kilometers of reach and no need for complex multiplexing. With its strong compatibility, future-proof cabling alignment, and deployment flexibility, the 40GBASE-PSM4 module remains a dependable choice for enterprise, cloud, and service provider networks alike. For organizations looking to build scalable, high-performance infrastructure without excessive cost, this module presents a practical and sustainable interconnect option.
